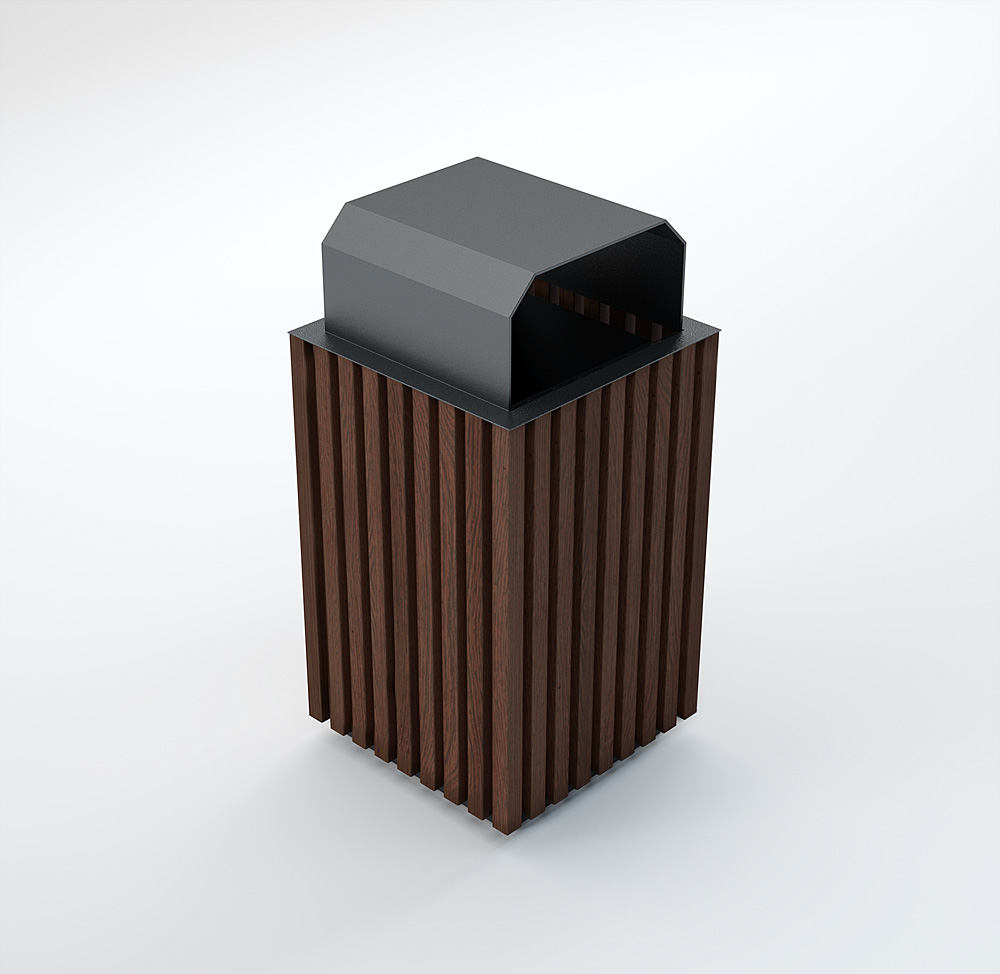

ELODIE WOOD | bin

COMPOSITION:

• Structure of vertical elements as follows:
• 32 profiles dimensions 35x35x742 mm.
• Lower base in steel, laser cut, size 482x482 mm, there are 2 holes with a diameter of 14 mm for fixing to the ground.
• Top closure in steel, size 482x482 mm, divided into two parts one of which opens with concealed hinges to allow the extraction of the inner bag.
• In the covered version:
• Top cover of size 400x400x205 mm in steel, properly folded and welded to the upper opening.
• 1 container carrier bag made of galvanized steel 6/10-bent (dimensions 350x350x730 mm).
• AISI 304 stainless steel screws.

FINISH:

• Top cover and lower base available in anthracite gray RAL 7016, pure white RAL 9010, white aluminium RAL 9006.
• Lateral vertical elements available in exotic wood available in wenge finish, iroko finish, natural finish.

TECHNICAL PARAMETERS:

• Overall dimensions mm 482 x 482 x 780 - capacity 80 litres - weight kg 50.
• Covered bin overall dimensions mm 482 x 482 x 990 - capacity 80 litres - weight kg 60.
